Product: Bed Sheet Feeder 'RAPIDE'

Model: RAPIDE-S3-33

Number of feeding stations: 3

Conveyor speed: 10-60m/min

Weight: 5,000kg

Machine size: Width 5,233mm, Length 3,930mm, Height 2,650mm

• Employs a simple method for feeding bed sheet into the machine that only require the operator to attach two corners of one side of a bed sheet to two clamps
• Allows the user to mix bed sheet of different sizes
• Three-sheet buffering is possible for each feeding station (maximum of 9 bed sheet)
• Feeding station ensures good operability

Catalog Product Videos

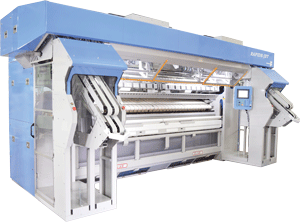

Product: Sheet dedicated feeder

Model: RAPIDE-JET-33

Number of feeding stations: 2

Conveyor speed: 10-50m/min

Weight: approx. 5,000kg

Machine size: Width 5,429mm, Depth 3,630mm, Height 2,430mm

Catalog Product Videos

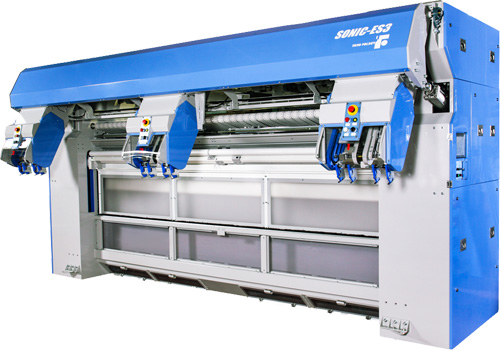

Product: Sheet and Cover feeder

Model: SONIC-ES3

Number of feeding stations: 3

Conveyor speed: 10-45m/min

Weight: 4,000kg

Machine size: Width 4,590mm, Length 2,030mm, Height 2,395mm

• Efficient and highly stable 3 feeding stations. Equipped with a rotation mechanism.
• Marked improvement of quality of finish by use of suction flaps and smoothing brushes
• Ensures stable feeding of even heavier duvet covers through use of a pinch clamp mechanism

Catalog Product Videos

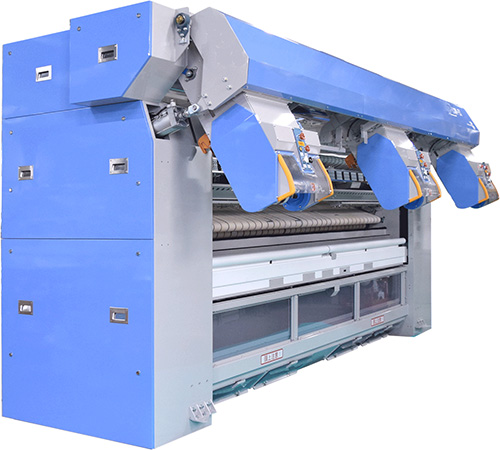

Product: Sheet and Cover feeder

Model: SONIC-ES3V (-EX)

Number of feeding stations: 3

Conveyor speed: 10-60m/min

Weight: 4,000kg

Machine size: Width 4,672mm, Depth 1,975mm, Height 2,395mm

• Equipped vacuum belts effectively smooth out fine wrinkles.
• If EX brush (optional item) is equipped, higher quality finishings will be obtained.

Catalog Product Videos

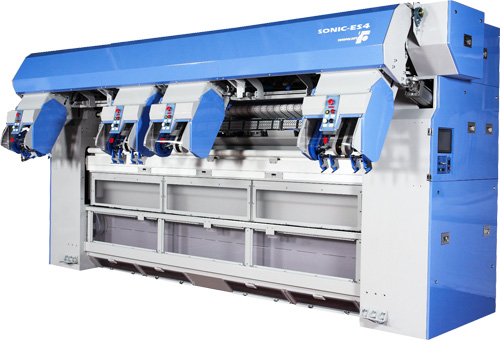

Product: Sheet and Cover feeder

Model: SONIC-ES4

Number of feeding stations: 4

Conveyor speed: 10-60m/min

Weight: 4,500kg

Machine size: Width 4,950mm, Depth 3,405mm, Height 2,395mm

• Efficient and highly stable 3 feeding stations. Equipped with a rotation mechanism→4
• Marked improvement of quality of finish through use of suction flaps and smoothing brushes
• Ensures stable feeding of heavier duvet covers through use of a pinch clamp mechanism

Catalog Product Videos

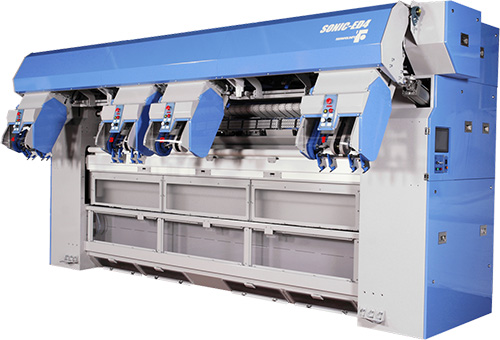

Product: Sheet and Cover feeder

Model: SONIC-ED4

Number of feeding stations: 4

Conveyor speed: 10-60m/min

Weight: 4,500kg

Machine size: Width 4,950mm, Depth 2,625mm, Height 2,395mm

• Equipped vacuum belts effectively smooth out fine wrinkles.
• 2 lanes operation improves work efficiency.

Catalog Product Videos

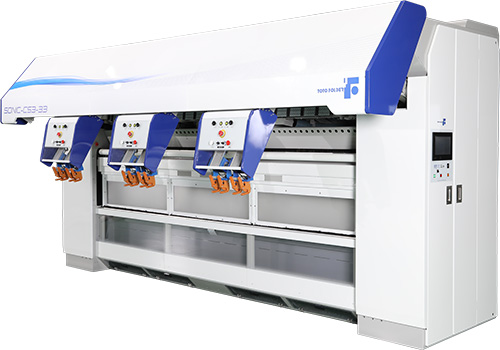

Product: Sheet and Cover feeder

Model: SONIC-CS3

Number of feeding stations: 3

Conveyor speed: 10-60m/min

Machine size: Width 4,672mm, Depth 1,975mm, Height 2,645mm

• A new mechanism which raises the clamp part one side at a time reduces the time to find the other end of the sheet.
• The clamp height and angle are adjustable according to the height of operators.

Catalog Product Videos

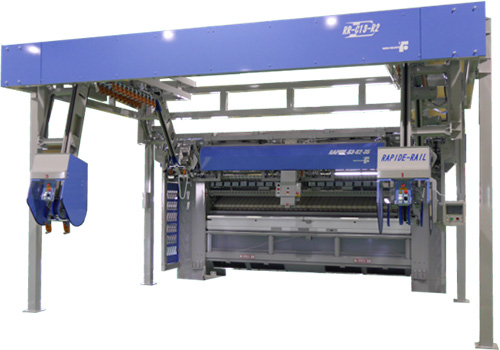

Product: Sheet dedicated Buffer System

Model: RAPIDE-RAIL

Number of stations:
2 rails (Max. 26 sheets can be buffered)
* At the time of 2 rails operation, one standard station can be installed.
3 rails (Max. 39 sheets can be buffered)

Machine size (Rail unit): Width 5,705mm, Depth 3,980mm, Height 3,705mm

Catalog Product Videos

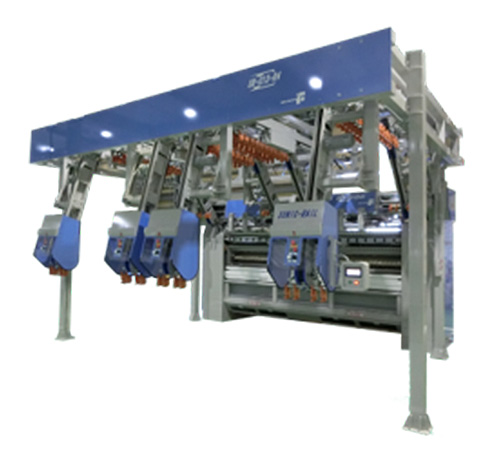

Product: Sheet and Cover Buffer System

Model: SONIC-RAIL

Number of stations:
2 rails (Max. 26 sheets can be buffered)
* At the time of 2 rails operation, 2 standard stations can be installed.
4 rails (Max. 52 sheets can be buffered)

Machine size (Rail unit): Width 5,655mm, Depth 3,860mm, Height 3,650mm

Catalog Product Videos
