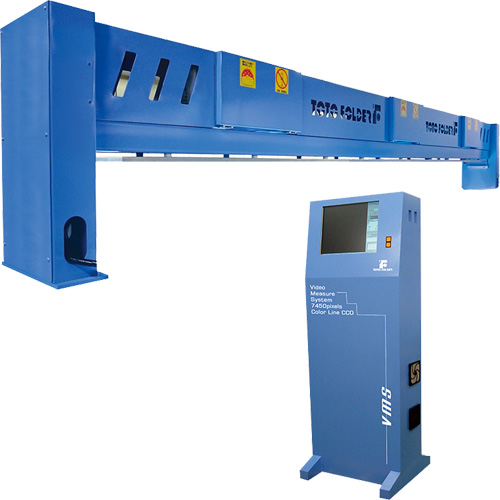

Product: Surface Inspection Device Video Measure

Model: VMS-GL-700 S/M

Number of lanes: S (1 lanes), M (1-5 lanes)

Conveyor speed: 10-70m/min

• Automatic surface inspection device for determination of dirt and tears
• With added original algorithm for mold detection, has an improved mold detection capability
• Reduced probability of false alarms with a relaxed algorithm for wrinkles
• Detects bed sheets with unsatisfactory shapes and ejects them from the folder

Catalog Product Videos

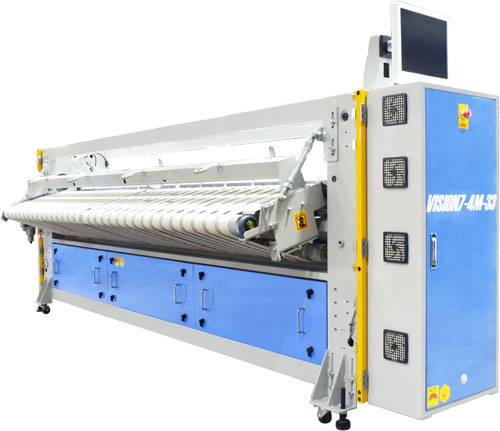

Product: Back Side Inspection Device 'Vision'

Model: VISION

Number of lanes: S (1 lanes), M (1-5 lanes)

Conveyor speed: 10-60m/min

Machine size: Width 4,398mm, Length 1,000mm, Height 1,842mm

• A back side inspection device unit that can be retrofitted to a folder
• Equipped with a mirrorless system eliminating image distortions
• Compact design to save space
• Camera is placed on the inside of the unit to minimize dust and heat related problems

Catalog Product Videos

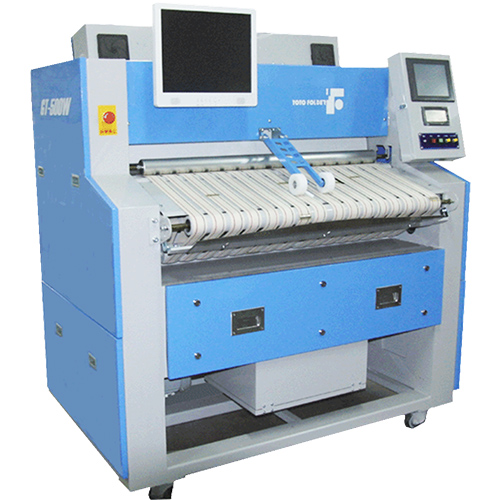

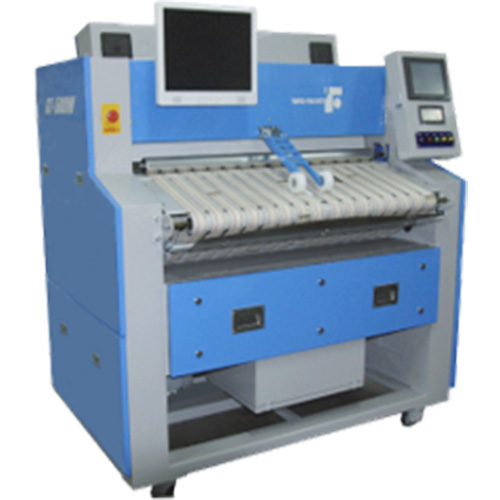

Product: 2-Side Inspection Device for Towels

Model: GT-500W

Conveyor speed: 30-35m/min

Machine size: Width 1,532mm, Length 1,082mm, Height 1,500mm

• 2-Side Inspection Device for Towels
• Capable of detecting color smears, black smears, tears, and loose threads
• Also discards as rejected goods linen items inserted askew or inserted with corners folded
• Automatically recognizes jacquard patterns and tags

Catalog Product Videos
