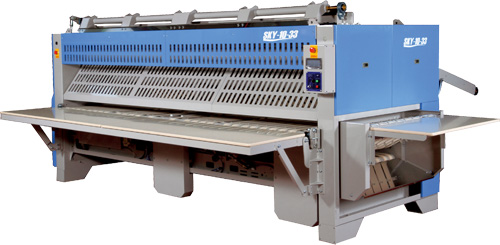

Product: Compact Sheets Basic Folder for Back Side Folding

Model: SKY-10-33

Number of lanes: 1

Conveyor speed: 15-60m/min

Weight: 2,200kg

Machine size: Width 4,585mm, Length 3,280mm, Height 1,800mm

• A compact and low cost folder
• Selectable for 4-folds, 16-folds, and 32-folds
• Includes a table for 4-folds as a standard feature
• Width of the 1st cross folding knife is set at 900mm for king size products as standard feature

Catalog Product Videos

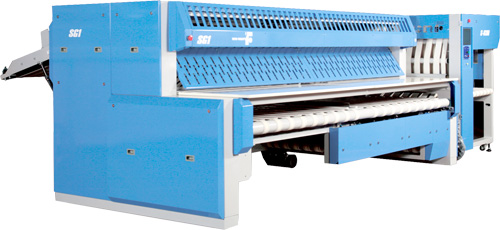

Product: Bed Sheet Folder for Front / Back Sides Folding

Model: SG1

Number of lanes: 1

Conveyor speed: 20-60m/min

Weight: 2,200kg

Machine size: Width 4,760mm, Length 2,830mm, Height 1,560mm

• Compact design for both lateral and cross integrated folds
• In addition to the regular 32-folds, allows for 64-folds (three lateral and three cross folds) as a standard feature
• Capability for folding not only bed sheets but also round cloth
• Selectable of front or back side folding

Catalog Product Videos

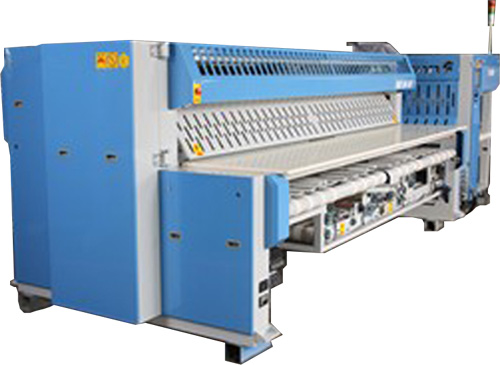

Product: Bed Sheet Folder for Front/Back Sides Folding (for 1-Lane and 2-Lane Setups)

Model: SG2-3C-33

Number of lanes: 1, 2

Conveyor speed: 20-60m/min

Weight: 2,300kg

Machine size: Width 4,250mm, Length 2,830mm, Height 1,560mm

• Compact design allowing for both 1-lane and 2-lane setups
• Equipped with a trip mechanism ensuring smooth productivity
• Versatile processing selectable including setting up 1-lane for bed sheets and two-lane for draw sheets, etc.

Catalog Product Videos

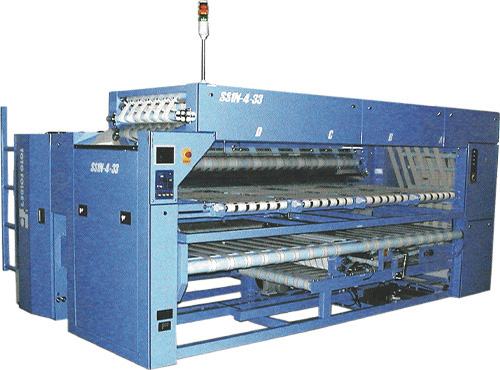

Product: Bed Sheet Folder with Four-Category Sorting Functionality for Front Side Folding

Model: SS1A-N4

Number of lanes: 1

Conveyor speed: 20-60m/min

Weight: 2,700kg

Machine size: Width 4,280mm, Length 3,420mm, Height 1,877mm

• With four-types auto stack sorting function, can automatically sort bed sheets by size
• Equipped with a static removal device as a standard feature
• Ensures highly precise stacking with an inverter system

Catalog Product Videos

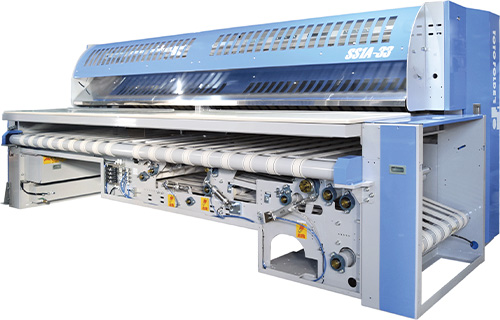

Product: Bed Sheet Folder for Front Side Folding

Model: SS1A

Number of lanes: 1

Conveyor speed: 20-60m/min

Weight: 2,000kg

Machine size: Width 4,560mm, Length 3,080mm, Height 1,550mm

• A bed sheet folder for front side folding
• Our best selling product in the bed sheet Folder category
• Allows for up to 32-folds

Catalog Product Videos

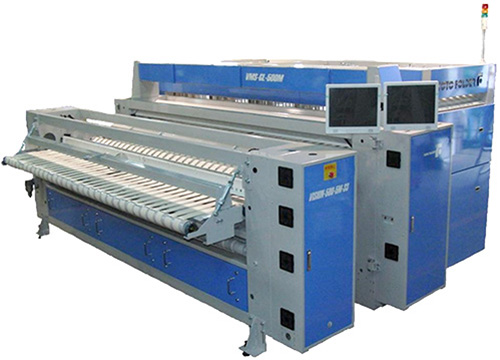

Product: Front side folding sheet folder (with 5 sorting stackers) dedicated to be connected with VISION (Back side inspection device)

Model: SS1V-N5-33

Number of lanes: 1

Conveyor speed: 20-60m/min

Machine size: Width 4,328mm, Depth 2,432mm, Height 1,877mm

• Sheet folder designed dedicatedly for front side folding and connection with VISION (Back side Inspection Device), the depth size of which is extremely minimized.

Catalog Product Videos

Product: Bed Sheet Folder with Four-Category Sorting Functionality for Front/Back Sides Folding

Model: VS1R-N4

Number of lanes: 1

Conveyor speed: 20-60m/min

Weight: 3,000kg

Machine size: Width 4,280mm, Length 3,611mm, Height 1,877mm

• Equipped with functionality for various kinds of folding for both sides
• Eliminates need for sorting with a function of stacking into four stacks
• Allows for 32-folds of up to two lateral and three cross folds

Catalog Product Videos

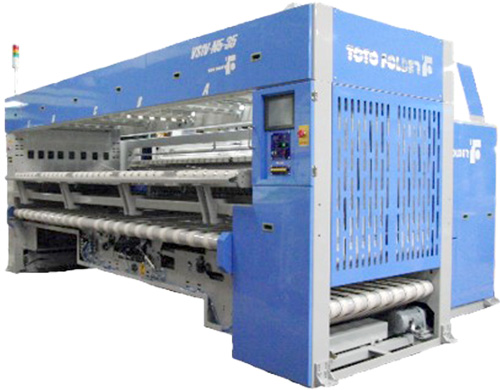

Product: Dual sides folding sheet folder (with 5 sorting stackers) dedicated to be connected with VISION (Back side inspection device)

Model: VS1V-N5-33K

Number of lanes: 1

Conveyor speed: 20-60m/min (Back side folding: Max. 40m/min)

Machine size: Width 4,328mm, Depth 3,132mm, Height 2,440mm

• Sheet folder designed for dual sides folding and connection with VISION (Back side Inspection Device), the depth size of which is extremely minimized.

Catalog Product Videos

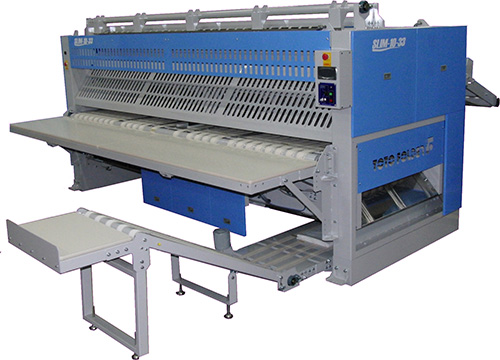

Product: Sheet folder dedicated for back side folding (with built-in stacker)

Model: SLIM-10-33

Number of lanes: 1

Conveyor speed: 20-60m/min

Machine size: Width 3,885mm, Depth 3,280mm, Height 1,865mm

• Space saving is realized by incorporating stacker inside, which was conventionally installed next to a feeder.

Catalog Product Videos

Product: Bed Sheet/Duvet Cover Folder for Back Side Folding

Model: SMF-10

Number of lanes: 1

Conveyor speed: 20-60m/min

Machine size: Width 4,380mm, Length 3,110mm, Height 1,750mm

• Folder for 1-lane setup
• An all-in-one type machine with compact design for both lateral and cross folds
• Capable of accurately folding even thick materials by incorporating knife mechanism for both 1st and 2nd folding

Catalog Product Videos

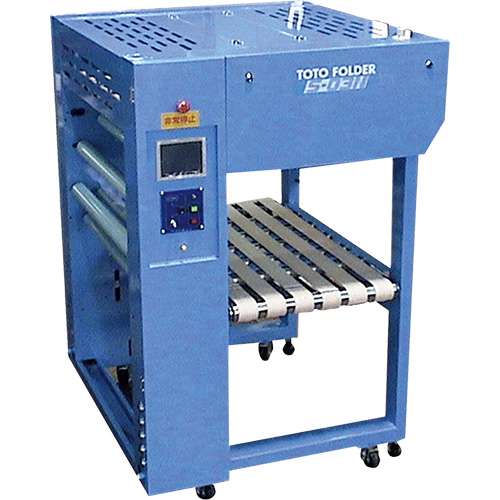

Product: High Position Stacker

Model: S-03N

Number of lanes: 1

Conveyor speed: 20-60m/min

Weight: 400kg

Machine size: Width 1,070mm, Length 1,152mm, Height 1,577mm

• A stacker that stacks products folded up with a folder on table height
• Capable of stacking coupled with both 1-lane and 2-lane machines

Catalog Product Videos

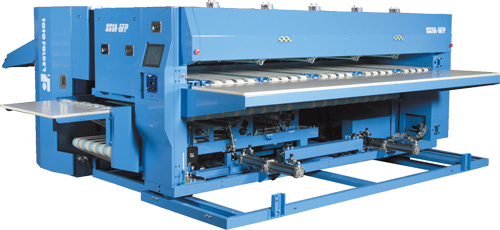

Product name: Bed Sheet/Pillow Case Folder for Front Side Folding

Model: SS1A-5FP

Number of lanes: 1 (pillow: 5)

Conveyor speed: 15-60m/min

Wight: 3,000kg

Dimensions: Width 4,260mm, Length 3,850mm, Height 1,600mm

• In addition to bed sheets and duvet covers, fold pillow cases
• Selectable of 4-folds, 16-folds, and 32-folds for bed sheets, and for 2-folds and 4-folds for pillow cases
• One-touch operation for switching folding settings
• Stacking of pillow cases is available up to ten pieces

Catalog Product Videos

Product name: Bed Sheet/Pillow Case Folder for Back Side Folding

Model: SMF-14

Number of lanes: 1, 2 (pillow: 4)

Conveyor speed: 20-60m/min

Wight: 2,200kg

Dimensions: Width 4,380mm, Length 2,650mm, Height 1,800mm

• Can accurately fold bed sheets, duvet covers, and tablecloths for products of different kinds are fed
• With back side folding, capable of folding various kinds of products including duvet covers with a frame around them
• Allows for multiple folding of various kinds of products from pillow cases to tablecloths
• Pillow cases are ejected one piece at a time

Catalog Product Videos
